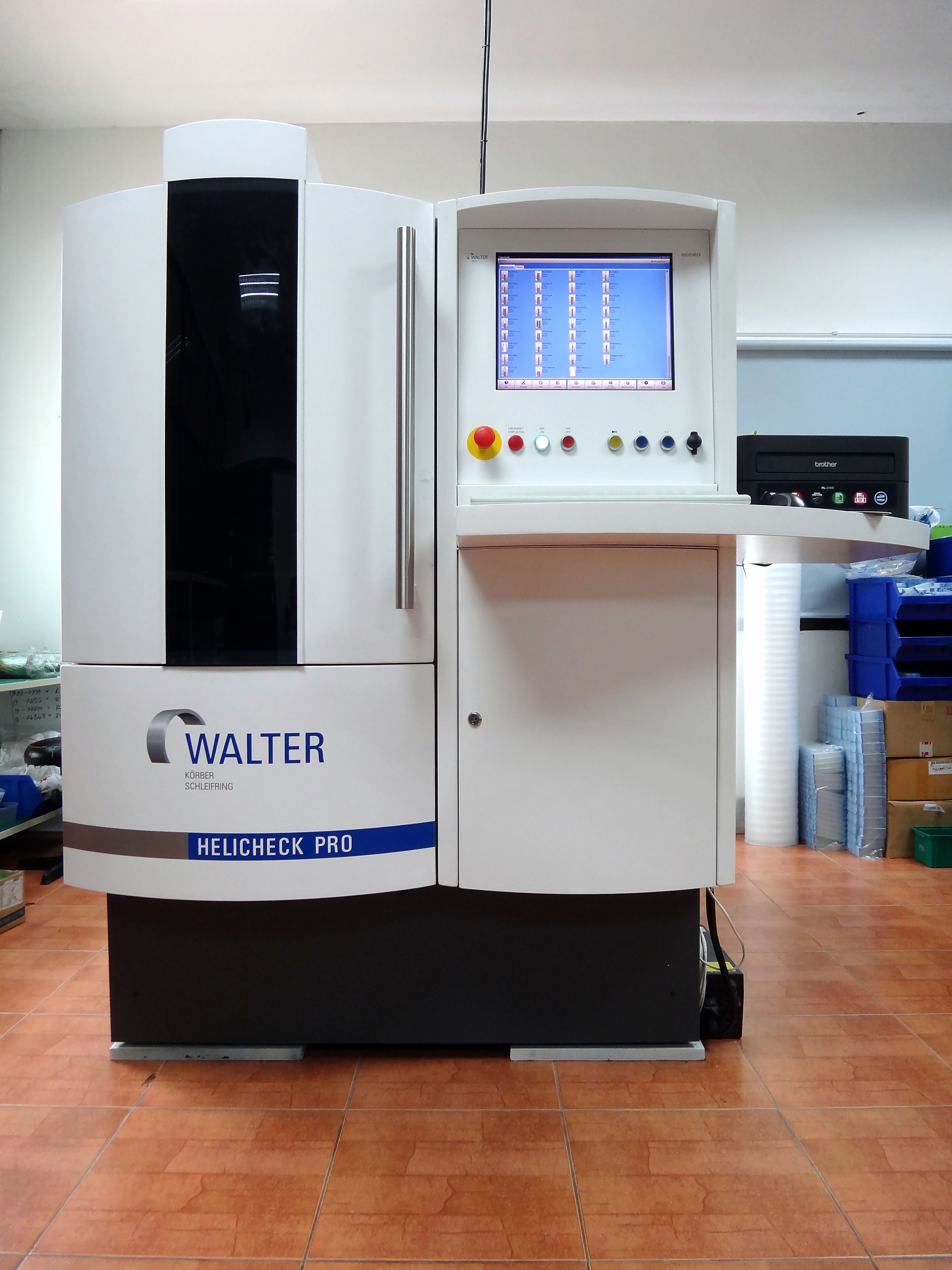

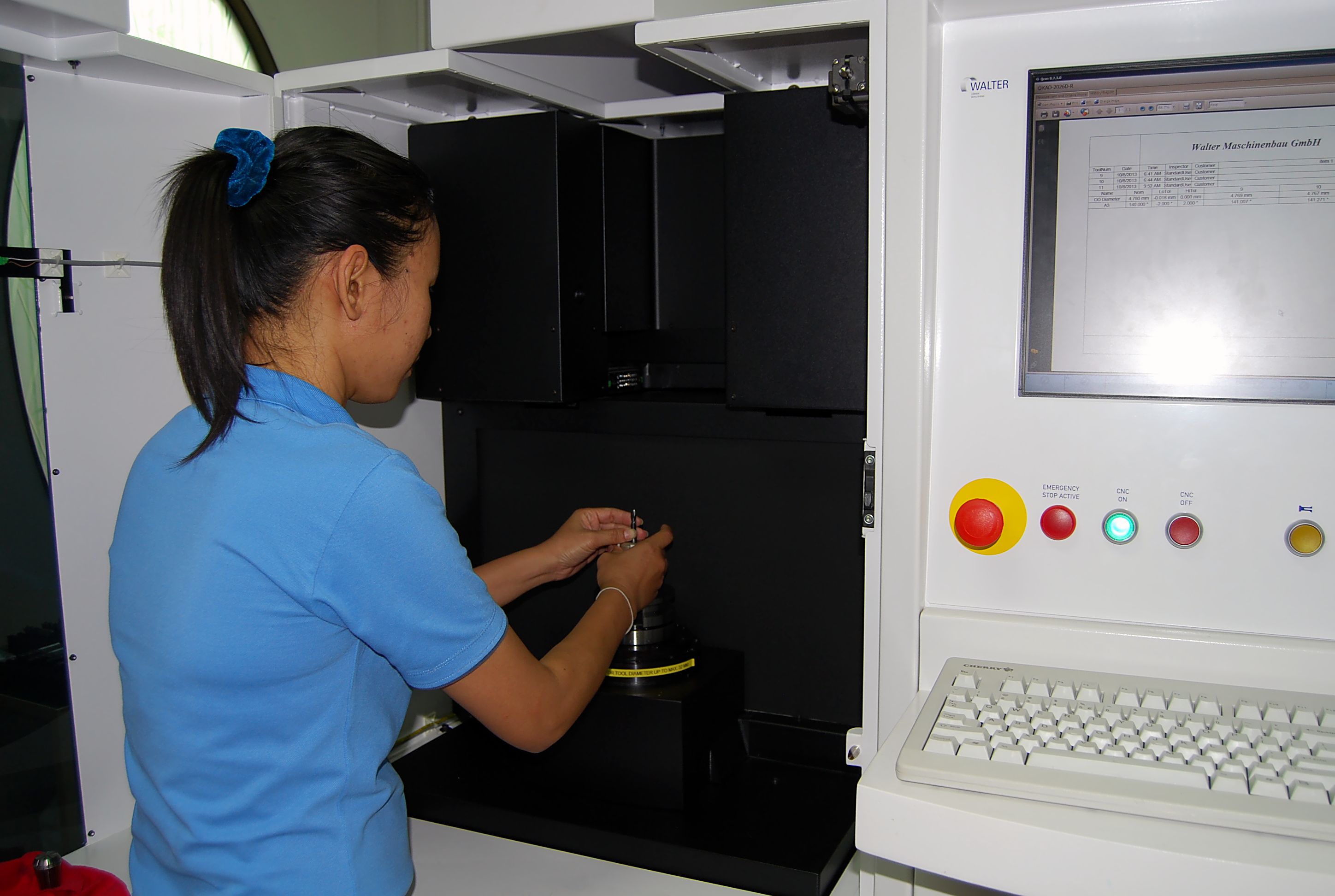

HELICHECK PRO
Technical Data
Base Solid granite base
Connected load at 230 V/50 Hz: 2 kVA
Pneumatic supply: Min. 6 bar
Weight: Approx. 2,500 kg

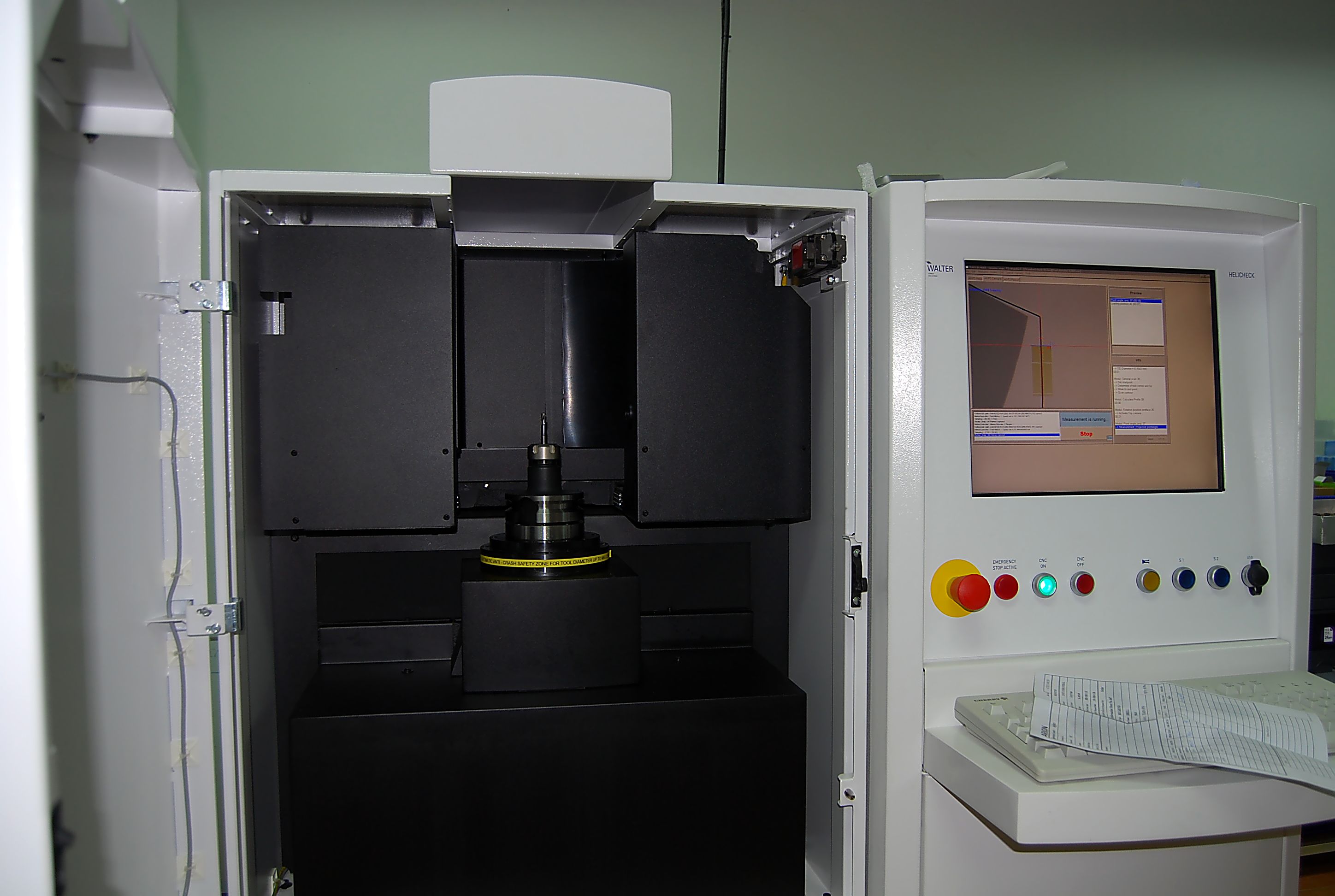

Optical system
Three permanently installed CCDcameras: Transmitted light camera (silhouette camera), front light camera, top light camera
LED segment light: For top light and front light
Light bars from side and background (door) Additional LED
Accuracy
Length deviation E1-Value: E1 = (1.4 + L/300 mm) µm
Repeatability: ≤ 1µm
Position resolution for linear axes X, Y, Z: 0.004 µm
Position resolution rotation axis A: < 0.00036 degrees
Measuring resolution values: 0.25 µm
Magnification
Transmitted light camera: 50x
Front light camera: 200x
Top light camera: 200x
Control
Standard software included in delivery:
Quick-Check Modular including Quick-Check Order Management
Teach-In-Mode
Easy Check
Team Viewer (remote maintenance)
Tool Data
Max. diameter: 200 mm
Diameter (calliper gauge principle): 150 mm
Max. length: 300 mm
Max. weight: 25 kg
