EWAMATIC LINE
Detail
File

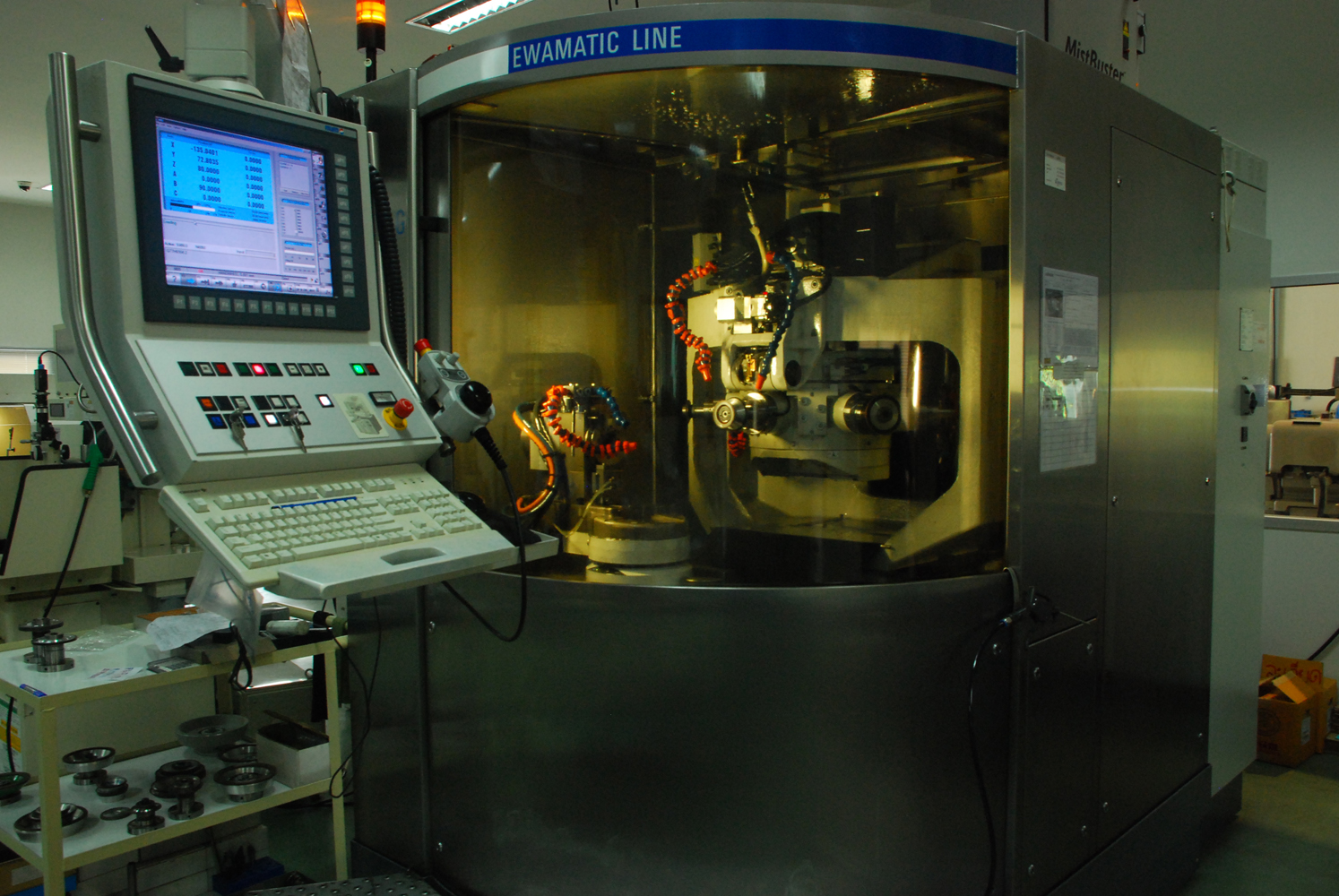

The EWAMATIC LINE CNC-controlled production grinding centre is suitable for manufacturing indexable inserts and rotationally-symmetrical tools. Tailored to the customer's individual requirements, a multitude of grinding operations can be performed in a single clamping.

The EWAMATIC LINE is a high-precision grinding and eroding machine which manufactures tools, indexable inserts and rotationally-symmetrical tools in hard metal, PCD or super-hard PCB.

Three criteria play an important role in the high autonomy of the CNC-controlled EWAMATIC LINE, for which a powerful NUM 1050 is used:

• Automatic charging.
• Integrated dressing of grinding wheels.
• Dimension measurement on the machine.

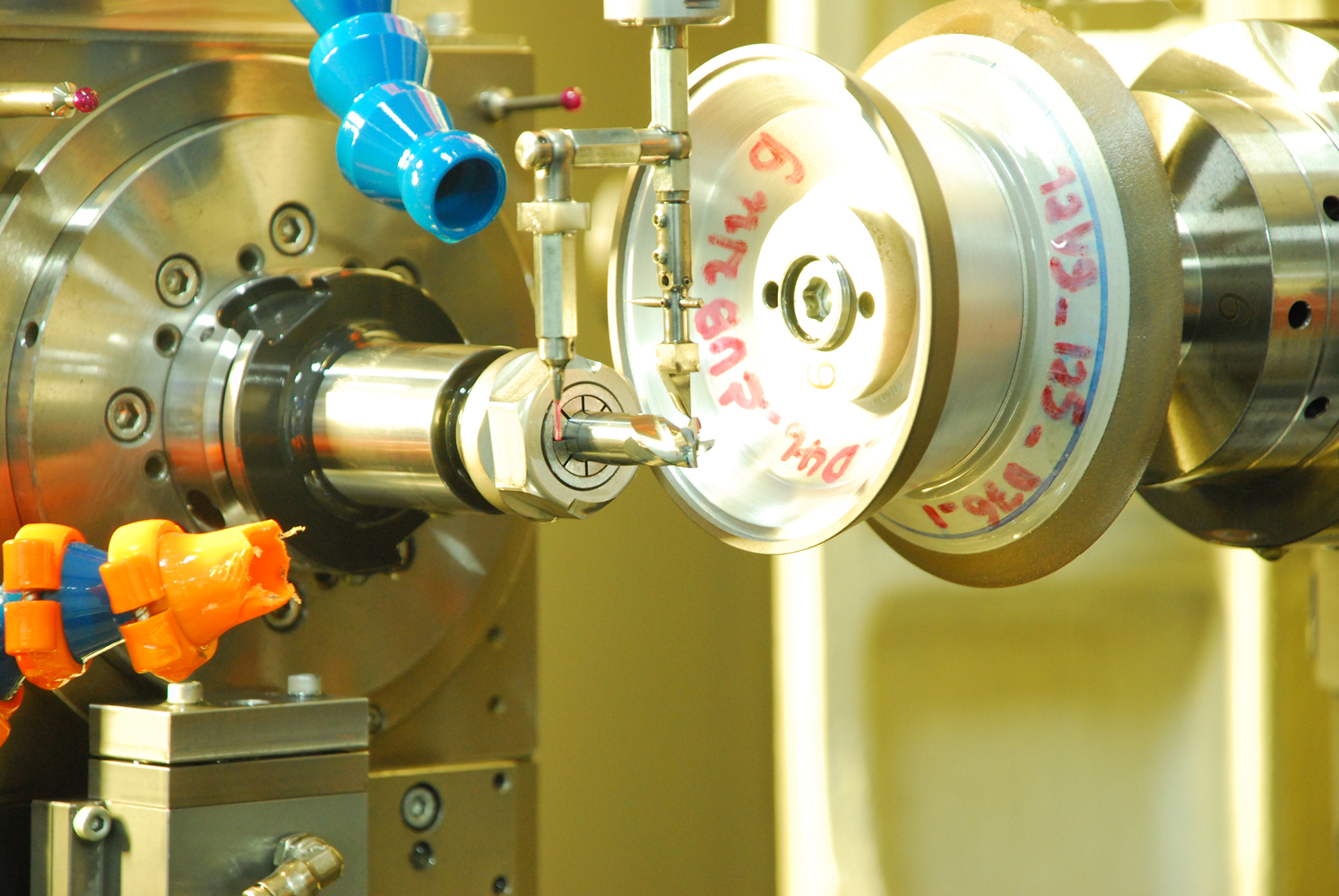

The kinematic concept of the EWAMATIC LINE is unique in its class. A multitude of grinding operations can thus be performed in a single clamping, with up to six independent grinding spindles (star-shaped grinding spindle supports).

:: Technical ::
X-axis, transverse adjustment mm:360
Y-axis, height adjustment mm:240
Z-axis, infeed stroke mm:240
Axis resolution mm:0,0001
B-axis, swivelling range degrees:?135
Axis resolution degrees:0,0001
C-Achse, Axis resolution degrees:0,0001
Grinding head SK 2000 Degrees:-15...+25
Grinding spindle drive kW:7,5
Grinding wheel diameter max. mm:250
